The Davies, Craig 5/16" (8mm) Adaptor Kit contains everything you need to fit our Transmission Oil Cooler to a General Motors Automatic Transmission.
The Davies Craig 5/16" (8mm) Adaptor Kit contains everything you need to fit our Transmission Oil Cooler to a General Motors Automatic Transmission.
Davies Craig Transmission Oil Coolers come with a standard 3/8" Hose size.
|

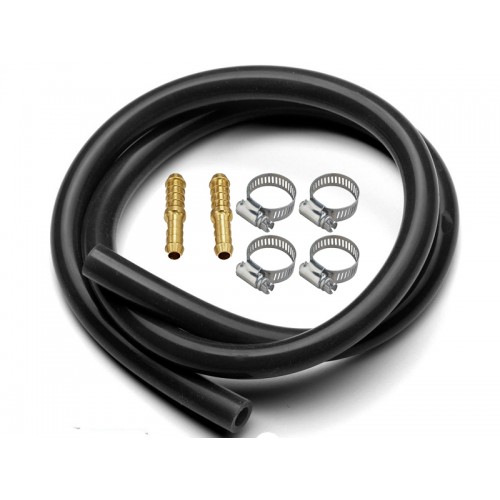

KIT CONTENTS |
|
|
DESCRIPTION |
UNITS |
|
5/16” (8mm) Hose x 1.5m |
1 |
|
Hose Clamps |
4 |
|
3/8 TO 5/16 REDUCER - BRASS |
2 |
|
Instructions |
1 |
|
SPECIFICATION & RANGE Transmission & Engine Oil Coolers |
|||||||||||
| Part # | Image | Plates | Thickness mm |
Overall | Core | Inlet/Outlet Size |
Hose Size | Heat Transfer Rate (BTU/HR) |
Fluid Capacity |
||
| Width mm | Height mm | Width mm | Height mm | ||||||||
|
Power Steering Cooler & Ultra-Cool Transmission Oil Cooler (Tube & Fin) |
|||||||||||
| 1009 |  |
Tube & Fin |
19 | 237 | 64 | 148 | 64 | 3/8” 9.5mm |
3/8” (9.5mm) 1.2m |
4,000 | N/A |
| 401 |  |
20 | 326 | 128 | 245 | 128 | 9,000 | N/A | |||
| 403 |  |
20 | 326 | 191 | 246 | 191 | 10,800 | N/A | |||
| 404 |  |
20 | 395 | 191 | 316 | 191 | 12,000 | N/A | |||
| Hydra-Cool Transmission Oil Cooler (Plate & Fin) | |||||||||||
| 676 |  |
12 | 20 | 281 | 141 | 281 | 112 | 3/8” 9.5mm |
3/8” (9.5mm) 1.4m |
11,987 | N/A |
| 677 |  |
17 | 20 | 281 | 180 | 281 | 152 | 13,394 | 56.7ml | ||
| 678 |  |
23 | 20 | 281 | 229 | 281 | 200 | 13,937 | 76.7ml | ||
| 679 |  |
30 | 20 | 281 | 300 | 281 | 265 | 15,710 | 100ml | ||
| Transmission Oil Cooler & Fan Combo Kits | |||||||||||
| 698 (12V) |
|
23 | 76 | 281 | 229 | 281 | 200 | 3/8” 9.5mm |
3/8” (9.5mm) 1.4m |
13,937 | 76.7ml |
| 699 (24V) | |||||||||||
| 691 (12V) | 30 | 76 | 281 | 300 | 281 | 265 | 15,710 | 100ml | |||
| 692 (24V) | |||||||||||
| Universal Engine/Transmission Oil Cooler | |||||||||||
| 602 |  |
14 | 32 | 258 | 224.5 | 258 | 185.5 | AN10 ORB | N/A | 21,000 | 500ml |
| 605 |  |
19 | 50 | 330 | 166 | 285 | 142 | 37,000 | 440ml | ||
| 610 |  |
30 | 50 | 330 | 249 | 285 | 226 | 50,000 | 690ml | ||
| 616 |  |
14 | 32 | 258 | 224.5 | 258 | 185.5 | M16 | N/A | 21,000 | 500ml |
| Universal Engine/Transmission Oil Cooler & Fan Combo Kits | |||||||||||
| 600 (12V) |  |
14 | 87 | 258 | 224.5 | 258 | 185.5 | AN10 ORB | N/A | 21,000 | 500ml |
| 608 (12V) |  |
30 | 106 | 330 | 249 | 285 | 226 | 50,000 | 690ml | ||
| 614 (12V) |  |
14 | 87 | 258 | 224.5 | 258 | 185.5 | M16 | N/A | 21,000 | 500ml |
| Accessories | |||||||||||
| 1005 |  |
5/16" (8mm) Adaptor Kit - Transmission Oil Cooler to suit GM transmissions | |||||||||
| 1006 |  |
Transmission Oil Cooler Fitting Kit (6R80) Suits Ford Ranger and Mazda BT50 | |||||||||
| 1007 |  |
Transmission Temperature Sensor Adapter Kit - suits 3/8” Hose and 1/4” NPT Sensor | |||||||||
| 1008 |  |
AN10 ORB to 3/8" Push on Hose Barb Fitting | |||||||||
| 1010 |  |
Transmission Oil Cooler Fitting Kit (AN10 ORB to 3/8" Hose) | |||||||||
| 579 |  |
Quick Fit Kits (Mounting Kit) | |||||||||
| 0444 0445 0500 |
 |
Digital Thermatic® / Electric Fan Switches | |||||||||
|
PRODUCT SELECTION GUIDE Transmission & Engine Oil Coolers |
||||
|---|---|---|---|---|
|
Vehicle Type |
APPLICATION |
|||
| Standard Duty / No Towing | Medium Duty/Light Towing | Heavy Duty/Heavy Towing | Super heavy Duty Transmission cooler or Engine oil cooler | |
|
Part Number |
Part Number |
Part Number |
Part Number |
|
| 4 Cyl. Up to 1990* |
#401 or #676 |
#403 or #676 |
#404 or #677 |
#602 |
| 6 Cyl. Up to 1990* |
#403 or #676 |
#404 or #677 |
#678 or #679 |
#602 |
| 8 Cyl. Up to 1990* |
#404 or #677 |
#678 | #679 |
#602 or #605 |
| Small Car | #676 | #677 | #678 |
#602 or #605 |
| Sedan / Wagon | #677 | #678 | #679 |
#602 or #605 or #610 |
| 4WDs & SUV | #678 | #679 | #602 |
#605 or #610 |
| Commercial | #678 | #679 |
#602 or #605 |
#610 |
| Cooler and Fan combo recommended for low-speed driving/towing and off-road applications | ||||
| Small Car |
#698 (12V) #699 (24V) |
#698 (12V) #699 (24V) |
#698 (12V) #699 (24V) |
#600 (12V) or #614 (12V) or #608 (12V) |
| Sedan / Wagon |
#698 (12V) #699 (24V) |
#698 (12V) #699 (24V) |
#691 (12V) #692 (24V) |
#600 (12V) or #614 (12V) or #608 (12V) |
| 4WDs & SUV |
#698 (12V) #699 (24V) |
#691 (12V) #692 (24V) |
#600 (12V) #692 (24V) |
#600 (12V) or #614 (12V) or #608 (12V) |
| Commercial |
#698 (12V) #699 (24V) |
#691 (12V) #692 (24V) |
#600 (12V) #692 (24V) |
#608 (12V) |
| Oil Cooler Accessories recommended for specific Transmissions | ||||
| GM-Holden Transmission | Select cooler as above plus #1005 | Select cooler as above plus #1005 | Select cooler as above plus #1005 | Select cooler as above plus #1005 |
| 6R80 Transmission | Select cooler as above plus #1006 | Select cooler as above plus #1006 | Select cooler as above plus #1006 | Select Part # as above plus #1006 |
| Power Steering Oil Cooler | ||||
| Vehicle | Standard Duty | Medium Duty | Heavy Duty | Super heavy Duty |
| All Vehicles | #1009 | #401 | #403 | #404 |
